What Are Butterfly Valves?

A butterfly valve is a quarter-turn valve that uses a rotating disc to regulate the flow of fluid. The design consists of a circular disc mounted on a shaft that pivots in the centre of the valve body. When the valve is closed, the disc completely blocks the flow of fluid. When it is opened, the disc rotates a quarter turn, allowing fluid to flow through the centre opening. This mechanism provides quick and efficient control over the flow rate.

How Do Butterfly Valves Work?

The operation of a butterfly valve is straightforward:

1. Opening and Closing: The valve’s disc can be rotated to various angles—typically 0 to 90 degrees. When the disc is parallel to the flow, the valve is fully open, allowing maximum fluid flow. When the disc is perpendicular to the flow, the valve is completely closed, restricting flow.

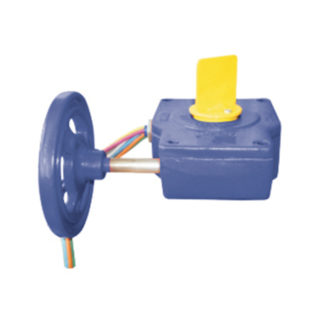

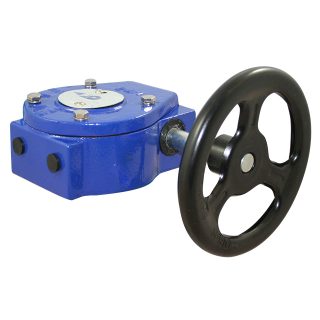

2. Actuation Methods: Butterfly valves can be operated manually using a handle or more commonly, through automated actuators. Electric, pneumatic, or hydraulic actuators can be used to control the valve’s opening and closing, allowing for remote operation and precision control.
3. Sealing Mechanism: Butterfly valves can employ a variety of sealing methods, such as elastomeric seals or metal to metal seating, depending on the service requirements and media involved.

Types of Butterfly Valves

Butterfly valves come in several types, each suited to specific applications:

1. Elastic Seat Butterfly Valves: These valves feature a flexible seat that creates a seal when the valve is closed. They are commonly used in applications where a tight seal is crucial.

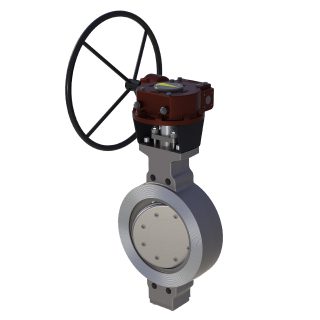

2. High-Performance Butterfly Valves: Designed for high-pressure applications, these valves often have a dual-flange design and can handle more demanding environments.
3. Triple Offset Butterfly Valves: These valves are engineered for high-performance applications, reducing wear and tear on the seal while offering tighter closing.

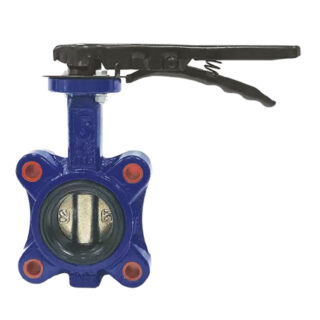

4. Lug Butterfly Valves: These valves are designed with threaded lugs for easy installation and maintenance, making them ideal for systems where the valve may need to be serviced without disrupting the piping.

Advantages of Butterfly Valves

Butterfly valves offer numerous benefits, making them a preferred choice in many settings:

• Simplicity and Compact Size: The design of butterfly valves allows for a more compact system compared to other valve types, such as gate or globe valves. This is especially advantageous in applications where space is limited.
• Cost-Effectiveness: Due to their design and efficient manufacturing processes, butterfly valves can be more cost-effective than other valve types, both in purchase and installation.
• Quick Operation: The quarter-turn operation allows for rapid opening and closing, enhancing efficiency in flow control.
• Versatility: Butterfly valves can handle a wide range of fluids, including gases, liquids, slurries, and even corrosive substances, making them applicable in various industries.
• Low Pressure Drop: The streamlined design of the disc minimizes turbulence and pressure drop in the pipeline, improving the overall efficiency of the system.

Common Applications

Butterfly valves are widely used across various sectors:

• Water and Wastewater Treatment: Used for managing the flow of water and controlling the discharge of treated water.
• Oil and Gas Industry: Employed in pipelines for oil, natural gas, and other hydrocarbons, facilitating shut-off and flow regulation.
• HVAC Systems: Used in heating, ventilation, and air conditioning systems to control airflow and temperature regulation.
• Chemical Handling: Essential in chemical processing plants for controlling the flow of corrosive liquids and gases.
• Food and Beverage Industry: Hygiene and cleanliness in food processes make butterfly valves a popular choice for fluid flow control.

At Valves R Us, customers can access an impressive lineup of butterfly valves in sizes ranging from 1 inch to 24 inches.

Diverse Material Options for Maximum Durability

Choosing the right material is crucial for ensuring the longevity and reliability of butterfly valves. At Valves R Us, we offer a variety of materials to suit different environmental conditions and service requirements:

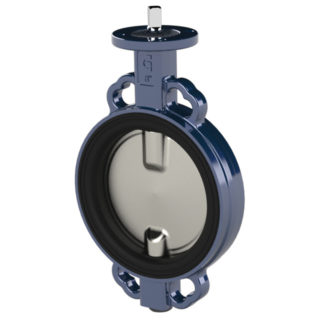

• Ductile Iron: Known for its resilience and ductility, ductile iron is a popular choice for many standard applications, offering excellent performance and strength.
• Cast Iron: With its proven durability and effectiveness in a range of applications, cast iron valves remain a staple in various industrial sectors.

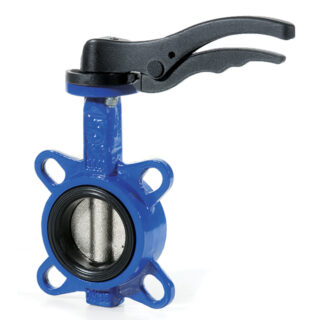

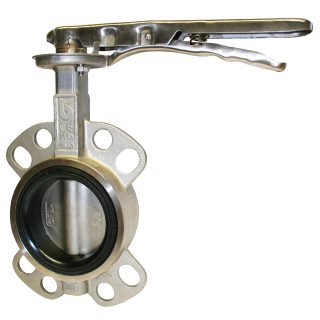

• Stainless Steel: Ideal for corrosive environments, stainless steel butterfly valves offer exceptional resistance, making them suitable for food, pharmaceutical, and chemical industries.
• Carbon Steel: For high-pressure applications, carbon steel provides the toughness and reliability needed to handle challenging conditions.

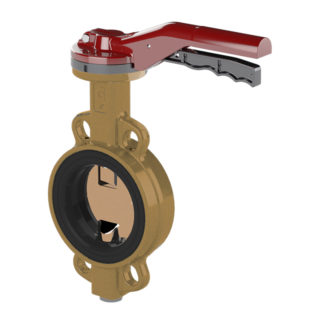

• Aluminium Bronze: This material is particularly effective against seawater and other corrosive media, perfect for marine applications and industries requiring high corrosion resistance.

Versatile Fittings to Match Every Need

• PN6, PN10, PN16, PN25: These standard pressure ratings cater to different pressure conditions, ensuring versatility in application.

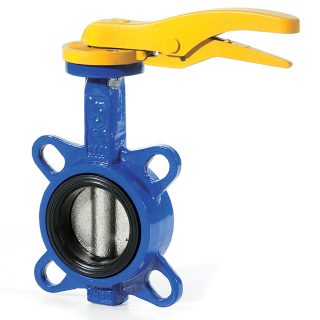

• Lugged and Wafer: These designs provide flexibility in mounting and installation, allowing for effective integration into existing systems.
• Butt Weld, Clamp, RTJ ANSI 150: These fittings provide robust joining solutions for high-pressure and critical service applications, ensuring leak-proof seals.
• Table D&E: These options are perfect for flange compatibility, making it easy to match existing installations.
