Sight flow indicators and sight glasses play a crucial role in various industrial and commercial applications by providing a visual indication of fluid flow. These transparent devices allow for the observation of fluid movement, enabling operators to monitor system performance and detect any potential issues.

Types of Sight Flow Indicators

Sight flow indicators are classified into two main types:

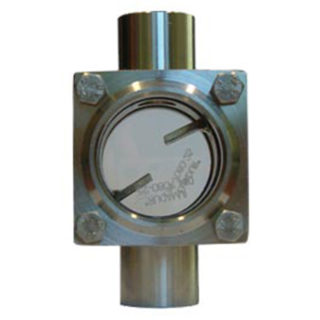

• Paddle Type: These indicators feature a rotating paddle or vane inside a glass tube. When fluid flows through the tube, the paddle rotates, indicating the direction and velocity of the flow.
• Turbine Type: Similar to paddle-type indicators, turbine-type indicators use a turbine wheel instead of a paddle. As the fluid passes through the indicator, the turbine wheel spins, providing a visual representation of the flow rate.

Types of Sight Glasses

Sight glasses, also known as sight ports, are transparent devices that allow for the direct observation of fluid flow. They are typically used in applications where a clear view of the fluid is essential, such as:

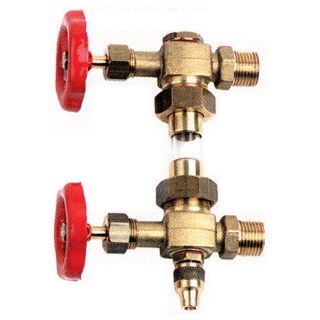

• Liquid Level Gauges: Sight glasses are incorporated into liquid level gauges to provide a visible indication of the fluid level in tanks or vessels.
• Pipeline Inspections: Sight glasses can be installed in pipelines to allow for visual inspections of the fluid flow, detecting any abnormalities or contamination.
• Equipment Monitoring: Sight glasses are integrated into equipment such as pumps, filters, and heat exchangers to monitor the flow of fluids and identify potential issues.

Materials and Designs

Sight flow indicators and sight glasses are typically made from durable materials such as glass, plastic (PVC, acrylic), or metal (brass, stainless steel). The choice of material depends on the specific application requirements, including pressure, temperature, and chemical compatibility.

Various designs are available to meet different needs. Sight flow indicators can come with adjustable flow vanes to indicate different flow rates. Sight glasses can be equipped with optional lighting systems to enhance visibility in low-light conditions.

Applications

Sight flow indicators and sight glasses are widely used in various industries, including:

• Chemical Processing: Monitoring flow rates of chemicals in pipelines and reactors.
• Food and Beverage: Ensuring proper flow of liquids in filling machines and processing equipment.
• Oil and Gas: Visualizing the flow of crude oil and petroleum products in pipelines and processing units.
• Pharmaceutical: Monitoring the flow of sterile liquids in manufacturing and packaging processes.
• Power Generation: Observing the flow of steam, water, and other fluids in power plants.

Benefits

The use of sight flow indicators and sight glasses offers several benefits, such as:

• Real-Time Visual Monitoring: Provides a clear view of fluid flow, allowing operators to monitor system performance and detect any irregularities.
• Early Detection of Problems: Visualizing fluid flow enables the early detection of potential issues, such as blockages, leaks, or contamination.
• Improved System Control: Real-time flow information allows operators to make informed decisions for process optimization and control.
• Reduced Maintenance: By providing a visual indication of fluid flow, sight glasses and indicators can help identify problems before they escalate, leading to reduced maintenance costs and downtime.
