Expansion Bellows, also known as expansion joints, are flexible, accordion-like devices used to accommodate thermal expansion and contraction in piping systems.

They compensate for movement caused by temperature changes, ensuring system integrity and preventing damage to connected components.

Expansion bellows are crucial elements in various industrial applications, especially in power plants, refineries, and chemical processing facilities.

Types of Expansion Bellows

Expansion bellows come in different types based on their design and material:

• Single Expansion Bellows: Consists of a single flexible element that expands or contracts in one direction.
• Multiple Expansion Bellows: Feature multiple flexible elements connected in series, allowing for larger axial movement.

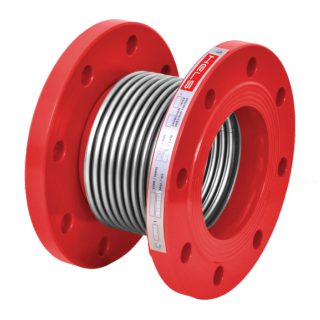

• Metal Expansion Bellows: Made of stainless steel or other highly corrosion-resistant alloys, providing strength and durability.
• Fabric Expansion Bellows: Constructed from flexible fabrics, offering a cost-effective option for low-pressure systems.

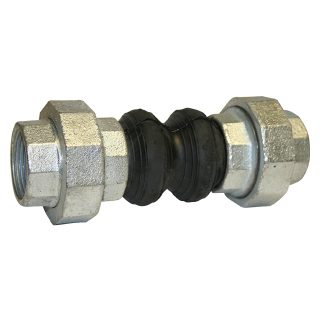

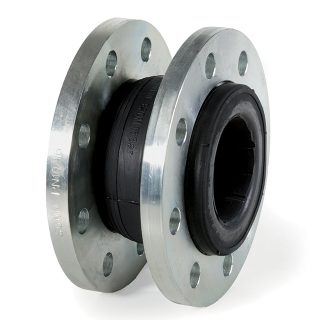

• Rubber Expansion Bellows: Utilize rubber or elastomers for high flexibility and resistance to vibration.

Design Considerations

When selecting and designing expansion bellows, several factors must be considered:

• Movement Capacity: The range of movement the bellows must accommodate, based on the maximum temperature change and piping configuration.
• Pressure Rating: The internal pressure the bellows can withstand without failing or leaking.
• Corrosion Resistance: The material must be compatible with the system’s fluid and environmental conditions.
• Temperature Range: The minimum and maximum temperatures the bellows will experience.
• Flexibility: Determines the ease with which the bellows can expand and contract.

Applications

Expansion bellows are widely used in a variety of industrial applications, including:

• Power Plants: Compensate for expansion and contraction in steam lines, boilers, and turbines.
• Refineries: Absorb movement in piping systems transporting hydrocarbons and other fluids.
• Chemical Plants: Allow for thermal expansion in process lines, reducing strain on vessels and equipment.
• HVAC Systems: Accommodate temperature-induced movement in ducts and piping.
• Cryogenic Applications: Enable expansion and contraction in low-temperature environments.

Benefits of Using Expansion Bellows

• Protect Piping Systems: Prevent damage from thermal expansion and contraction.
• Increase System Longevity: Reduce strain on connected components, extending their lifespan.
• Improve Safety: Eliminate leaks and potential hazards caused by system failures.
• Enhance System Reliability: Ensure reliable operation even under fluctuating temperatures.
• Reduce Maintenance Costs: Lessen the need for frequent repairs and replacements.
