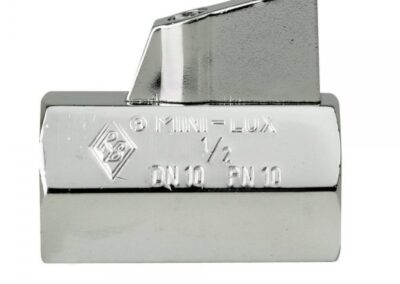

Mini Ball Valves are quarter-turn valves that utilise a spherical disk (or ball) to regulate the flow of fluids. Positioned within the valve body, the ball features a bore (or hole) that aligns with the flow path when opened and obstructs the flow when turned 90 degrees to close. This simple yet effective design allows for quick and precise control over fluid flow.

Unlike standard ball valves, which can be larger in size, Mini Ball Valves are designed for compact applications. Typically measuring under one inch in diameter, they are ideal for situations where space is limited but reliability is still necessary.

 Components of Mini Ball Valves

A Mini Ball Valve consists of several key components:

• Body: The outer shell of the valve, often made from materials like brass, stainless steel, or plastic, which houses the internal components.
• Ball: The core component that controls flow, the ball has a hole that allows fluid passage when aligned with the valve body.
• Stem: The mechanism that connects the ball to the handle, allowing the user to operate the valve.
• Handle: The lever used to manually operate the valve, typically requiring only a quarter turn to open or close.
• Seals and O-rings: Critical for preventing leaks, these components ensure a tight fit between the ball and the valve body.

 Advantages of Mini Ball Valves

Mini Ball Valves offer several compelling benefits, making them an excellent choice for a variety of applications:

• Space Efficiency: Their compact size allows for installation in tight spaces where larger valves would be impractical.
• Ease of Operation: Designed for quick operation, mini ball valves can be easily turned on or off with just a quarter turn of the handle.
• Durability: High-quality materials enhance their longevity, making them suitable for both residential and industrial applications.
• Low Flow Resistance: The smooth bore of the ball allows for minimal resistance to flow, ensuring that systems operate efficiently.
• Versatility: Available in various materials and sizes, mini ball valves can be used with different fluids, including water, oil, and gas.

 Applications of Mini Ball Valves

Due to their numerous advantages, mini ball valves are used in a wide array of applications, including:

• Plumbing Systems: Commonly used in residential plumbing for controlling water flow in pipes.
• Heating and Cooling Systems: Utilised in HVAC systems to manage fluid flow in chilled water and hot water lines.
• Industrial Processes: Employed in food and beverage production, chemical processing, and other industrial applications where fluid management is critical.
• Irrigation: Used in agricultural applications for controlling the flow of water in drip or sprinkler irrigation systems.

How to Choose the Right Mini Ball Valve

When selecting a mini ball valve, consider the following factors:

• Size: Ensure that the valve is appropriate for the diameter of your piping system.
• Material: Choose a material that matches the fluid being handled in terms of compatibility and durability.
• Pressure Rating: Check the valve’s pressure rating to ensure it can withstand the operational conditions of your system.
• Temperature: Consider the temperature range of the fluids being controlled, as some materials may not perform well under extreme temperatures.
• Actuation Method: Decide whether a manual handle is sufficient or if you require an automated style (electric or pneumatic).
